Front and Rear Door Switch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove door switch.
Check continuity between switch body and terminal at each switch position. If check result is not as specified, replace switch.

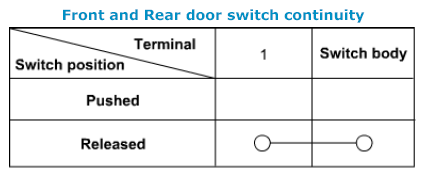

Fig 1: Front And Rear Door Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

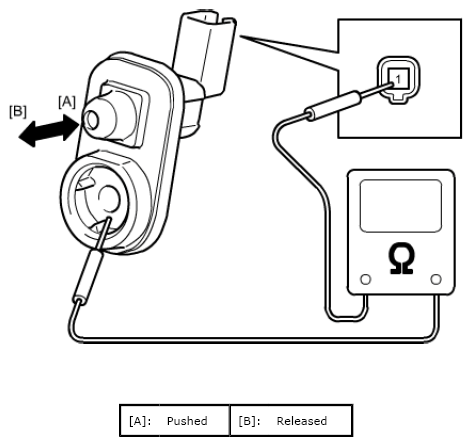

Fig 2: Checking Continuity Between Door Switch Body And Terminal
Courtesy of SUZUKI OF AMERICA CORP.
