Wiper and Washer Switch Circuit Continuity Check

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals at each switch position. If check result is not as specified, replace wiper and washer switch.

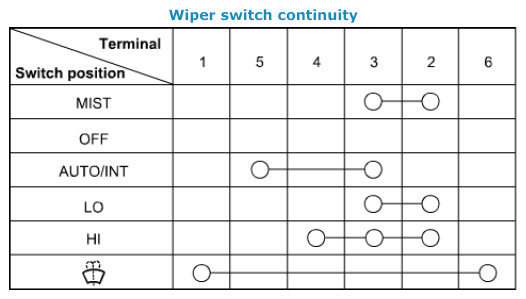

Fig 1: Wiper Switch Terminals Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

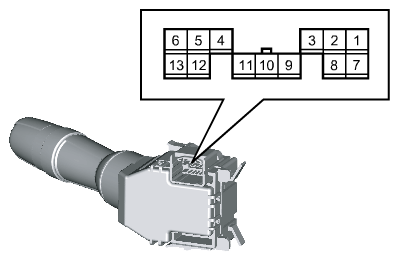

Fig 2: Identifying Wiper And Washer Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.
