Wiper Motor Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure noting the following points.

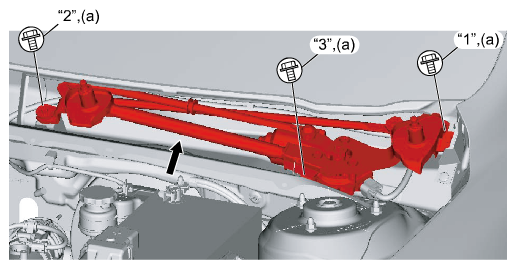

Tighten wiper motor bolts in numerical order ("1" through "3") to specified torque.
Tightening torque

Wiper motor bolt (a): 8.3 N.m (0.85 kg-m, 6.5 lbf-ft)

Fig 1: Identifying Wiper Motor Bolt In Tightening Sequence
Courtesy of SUZUKI OF AMERICA CORP.

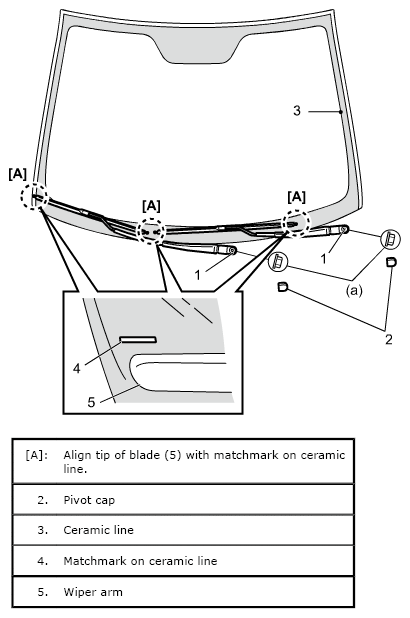

Install wiper arms (1) in positions shown in figure and tighten wiper arm nuts to specified torque.
Tightening torque

Wiper arm nut (a): 20 N.m (2.0 kg-m, 15.0 lbf-ft)
