Rain/Light Sensor Setting Change Procedure (If Equipped)

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check that vehicle is in the following conditions.
- Ignition mode of keyless push start system is "OFF".
- Wiper and washer switch is OFF.
- Lighting switch is OFF.
- Wiper is in park positions.
- Temperature around rain/light sensor is 5 to 40 °C (41 to 120 °F).
- Vehicle is stopped.
- Adjustment knob (1) is as shown in figure.

  Fig 1: Identifying Adjustment Knob
  Courtesy of SUZUKI OF AMERICA CORP.
Perform the following procedure within 10 seconds.
1. Push engine switch to change ignition mode of keyless push start system to "ON".
2. Wait for 3 seconds.
3. Change position of adjustment knob in sequence of 5→4→5 within 1 second.
4. Change position of adjustment knob in sequence of 5→1→5 within 1 second.
5. Change position of adjustment knob in sequence of 5→4→5 within 1 second.

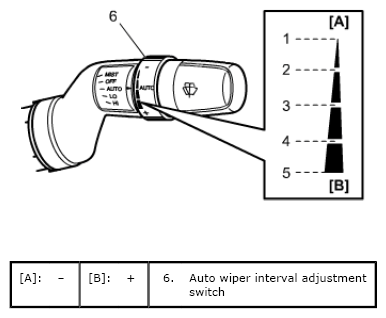

  Fig 2: Identifying Adjustment Knob Positions
  Courtesy of SUZUKI OF AMERICA CORP.
Check that clearance lights flash at 1-second interval.
Repeat procedure beginning with Step 1) if clearance lights do not flash.

NOTE: If clearance lights operate repeating a 3-second on, 1-second off cycle, rain/light sensor may be abnormal. Perform diagnosis in this case.

Select desired setting item from the following table. Then proceed to setting change mode for selected item according to corresponding procedure described below.

NOTE: On proceeding to setting change mode for selected setting item, headlights flash in pattern specific to current setting. Confirm current setting referring to the following table before starting setting change operation.

SETTING ITEM REFERENCE

Setting item	Setting option	Headlight flashing pattern
Auto-on headlight system operation mode	Lights turn on at higher outside light intensity than standard	0.5 second interval flashing
	Standard	0.5 second on, 1.5 seconds off
	Lights turn on at lower outside light intensity than standard	0.5 second on, 3.5 seconds off
Rain-sensing wiper system operation mode	Semi-automatic operation	0.5 second interval flashing
	Full automatic operation	0.5 second on, 1.5 seconds off
	Manual intermittent operation	0.5 second on, 3.5 seconds off
Interlocked operation of rain-sensing wiper and auto-on headlight functions	Interlocked only in heavy rain	0.5 second interval flashing
	Interlocked in any rain	0.5 second on, 1.5 seconds off
	Not interlocked	0.5 second on, 3.5 seconds off
Reinitialization	Perform Step 4) and 5) of "Initialization" under Rain/Light Sensor Initialization (If Equipped) .

Auto-on headlight system operation mode

Change lighting and turn signal switch position in the following sequence within 1 second: AUTO→OFF→AUTO.
Headlights flash in pattern of current setting.
Select desired setting option referring to the following table.

Headlights flash in pattern of new setting.

AUTO KNOB POSITION REFERENCE

AUTO knob position	Setting
5	Turns on at higher outside light intensity than standard
4 or 3	Standard
2 or 1	Turns on at lower outside light intensity than standard

Rain-sensing wiper system operation mode

Set AUTO knob to position "4", and then change wiper and washer switch position from OFF to AUTO.
Headlights flash in pattern of current setting.
Select desired setting option referring to the following table.
Headlights flash in pattern of new setting.

AUTO KNOB POSITION REFERENCE

AUTO knob position	Setting
5	Semi-automatic operation: Automatic control mode without stop control
4 or 3	Full-automatic operation: Automatic control mode including stop control
2 or 1	Manual intermittent operation: Standard intermittent wiper operation without rain-sensing wiper function

Interlocked operation of rain-sensing wiper and auto-on headlight functions

Set AUTO knob to position "2", and then change wiper and washer switch position from OFF to AUTO.
Headlights flash in pattern of current setting.
Select desired setting referring to the following table.

Headlights flash in pattern of new setting.

AUTO KNOB POSITION REFERENCE

AUTO knob position	Setting
5	Interlocked operation only in heavy rain: Headlights turn on automatically in conjunction with wipers when it rains heavily.
4 or 3	Interlocked operation in any rain: Headlights turn on automatically in conjunction wipers whenever it rains.
2 or 1	Non-interlocked operation: Headlights do not turn on automatically even when wipers are automatically operated.

Check new setting referring to headlight flashing patterns in table of Step 4).
NOTE: Lighting or flashing of headlights will start about 5 seconds after setting change has been completed.
After completion of setting change, push engine switch to change ignition mode of keyless push start system to "OFF" or run the vehicle.
