Trunk Light Removal and Installation: Removal
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

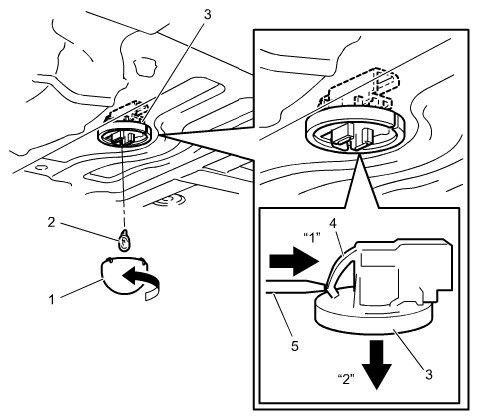

- Remove trunk light lens (1) by turning it in direction of arrow and then remove bulb (2).
- Remove partition trim.
- Disconnect trunk light connector.
- Remove trunk light socket (3) by pushing lock (4) in direction of arrow using flat-end screwdriver as shown and then pulling socket down.
