Lighting and Turn Signal Switch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: LIGHTING AND TURN SIGNAL SWITCH REMOVAL AND INSTALLATION

Check continuity between terminals at each switch position. If check result is not as specified, replace switch.

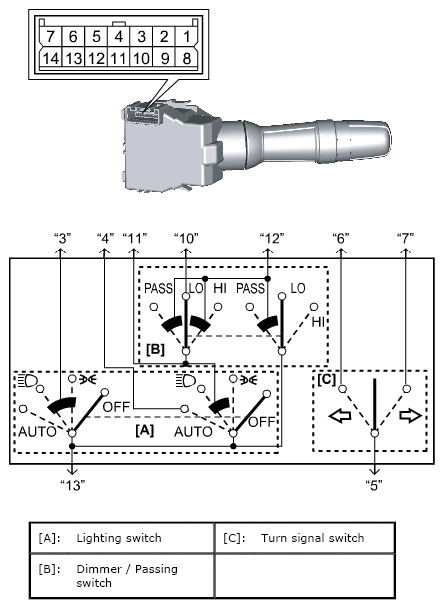

Fig 1: Identifying Lighting And Turn Signal Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Dimmer/Passing Switch And Lighting Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Dimmer/Passing switch does not have dead point. (Both high and low beam lights light up simultaneously at transition point.)

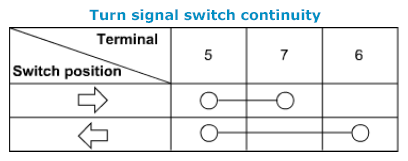

Fig 3: Turn Signal Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.
