License Light Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trunk lid trim, see TRIM REMOVAL AND INSTALLATION .
  2. Remove trunk lid opener switch, see TRUNK LID OPENER SWITCH REMOVAL AND INSTALLATION .
  3. Disconnect license light connector.
  4. Remove license light bracket clips, and remove license light bracket (2).
  5. Remove license light cover (1).
  6. Remove license light (3).

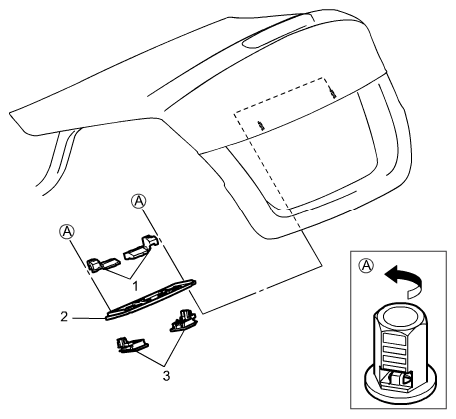

    Fig 1: Identifying License Light Cover, License Light Bracket And License Light
    G06528996Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove bulb.
