Aiming Adjustment Screws

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Use aiming adjustment screws as shown in figure.

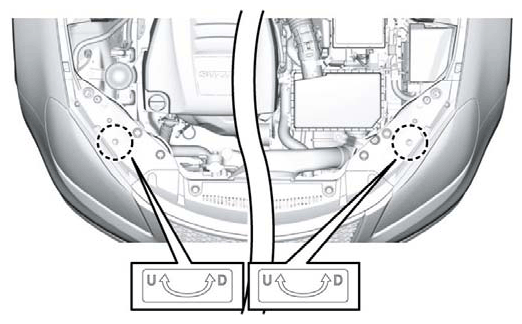

Fig 1: Identifying Aiming Adjustment Screws
G06528984Courtesy of SUZUKI OF AMERICA CORP.
