Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: HVAC Control Module Removal and Installation

Check continuity between terminals at each switch position. If check result is not as specified, replace auto A/C panel.

NOTE: Set tester to diode range when checking continuity between terminals 2 and 4.

Fig 1: Identifying Hazard Warning Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.

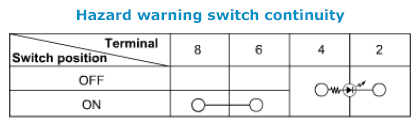

Fig 2: Hazard Warning Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.
