Glove Box Light Switch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove glove box light switch.
Check continuity between terminals at each switch position. If check result is not as specified, replace switch.

Fig 1: Identifying Glove Box Light Connector Terminals
Courtesy of SUZUKI OF AMERICA CORP.

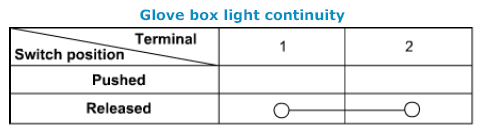

Fig 2: Glove Box Light Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.
