Fog Light Switch Inspection (If Equipped)

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: FOG LIGHT SWITCH REMOVAL AND INSTALLATION (IF EQUIPPED)

Check continuity between terminals at each switch position. If check result is not as specified, replace switch.

Fig 1: Identifying Fog Light Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.

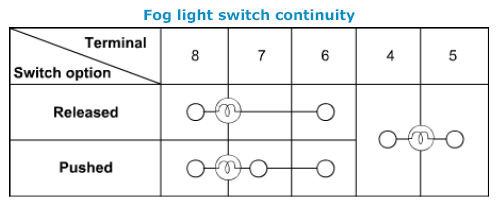

Fig 2: Fog Light Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.
