Fog Light Aiming Adjustment (If Equipped)

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: After any of the following services, be sure to aim fog lights.

Fog light replacement.
Fog light removal and installation.

Adjust air pressure of all tires to specified value.
Have one person sit on driver seat.
Turn on fog lights.
Place screen (1) 3 m (9.8 ft.) ahead of vehicle.
Adjust with aiming screw so that bright/dark boundary is 60 mm (2.4 in.) below fog light center.

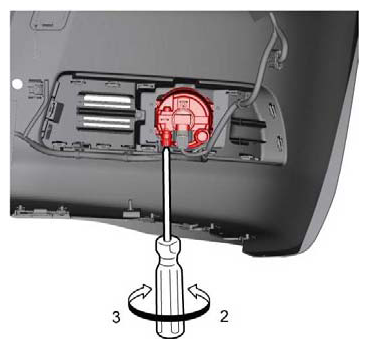

Fig 1: Adjusting Fog Light Aiming With Aiming Screw
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Distance Between Screen And Vehicle
Courtesy of SUZUKI OF AMERICA CORP.
