G-4 Navigation System Circuit Diagram (without Audio Amplifier)
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

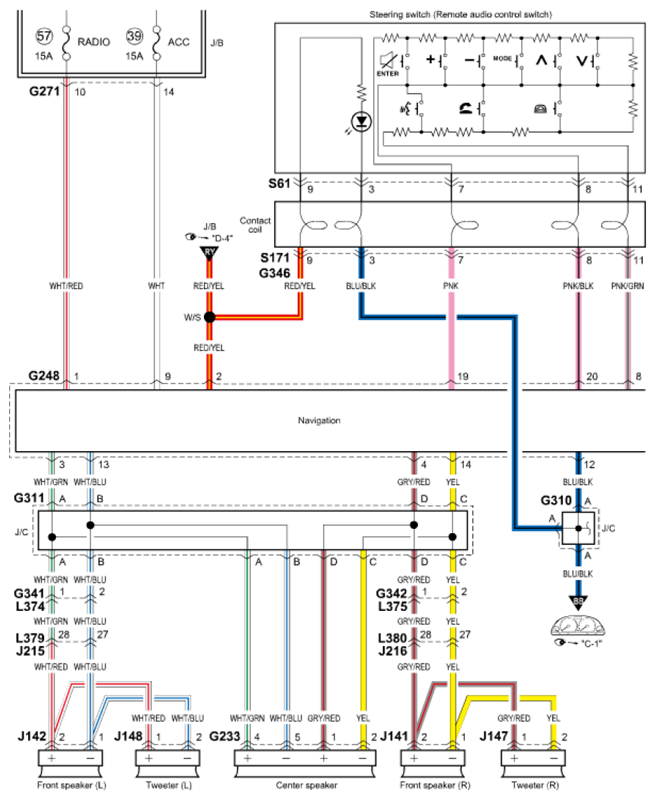

Fig 1: Navigation System Circuit Diagram (Without Audio Amplifier) (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

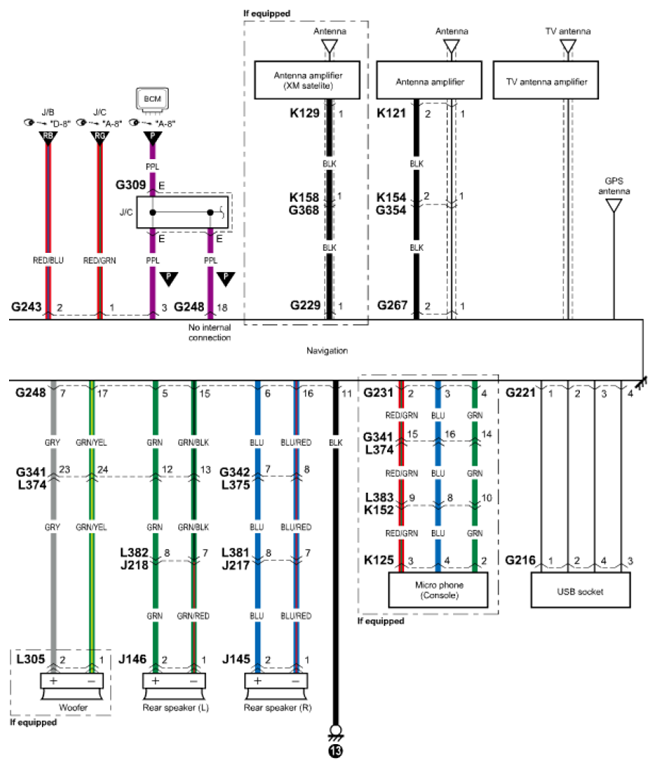

Fig 2: Navigation System Circuit Diagram (Without Audio Amplifier) (2 Of 2)
