G-4 Navigation System Circuit Diagram (with Audio Amplifier)
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

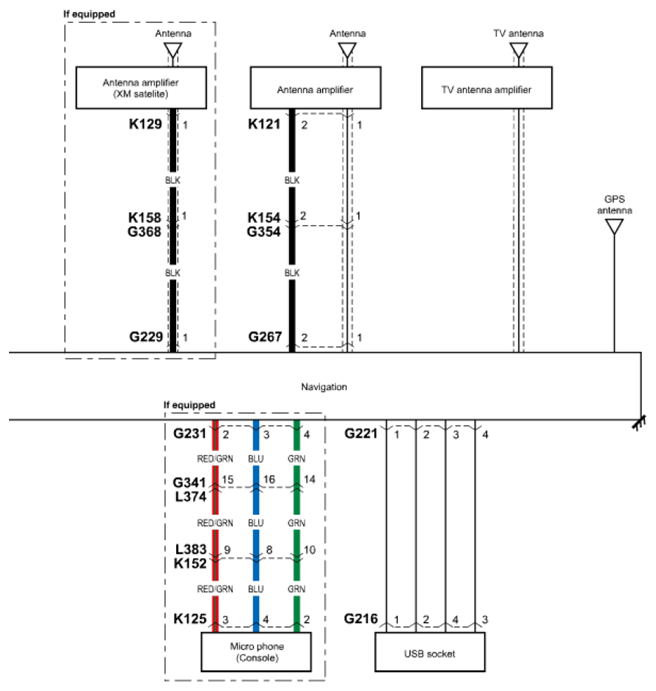

Fig 1: Navigation System Circuit Diagram (With Audio Amplifier) (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Navigation System Circuit Diagram (With Audio Amplifier) (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Navigation System Circuit Diagram (With Audio Amplifier) (3 Of 3)
