L Connector

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

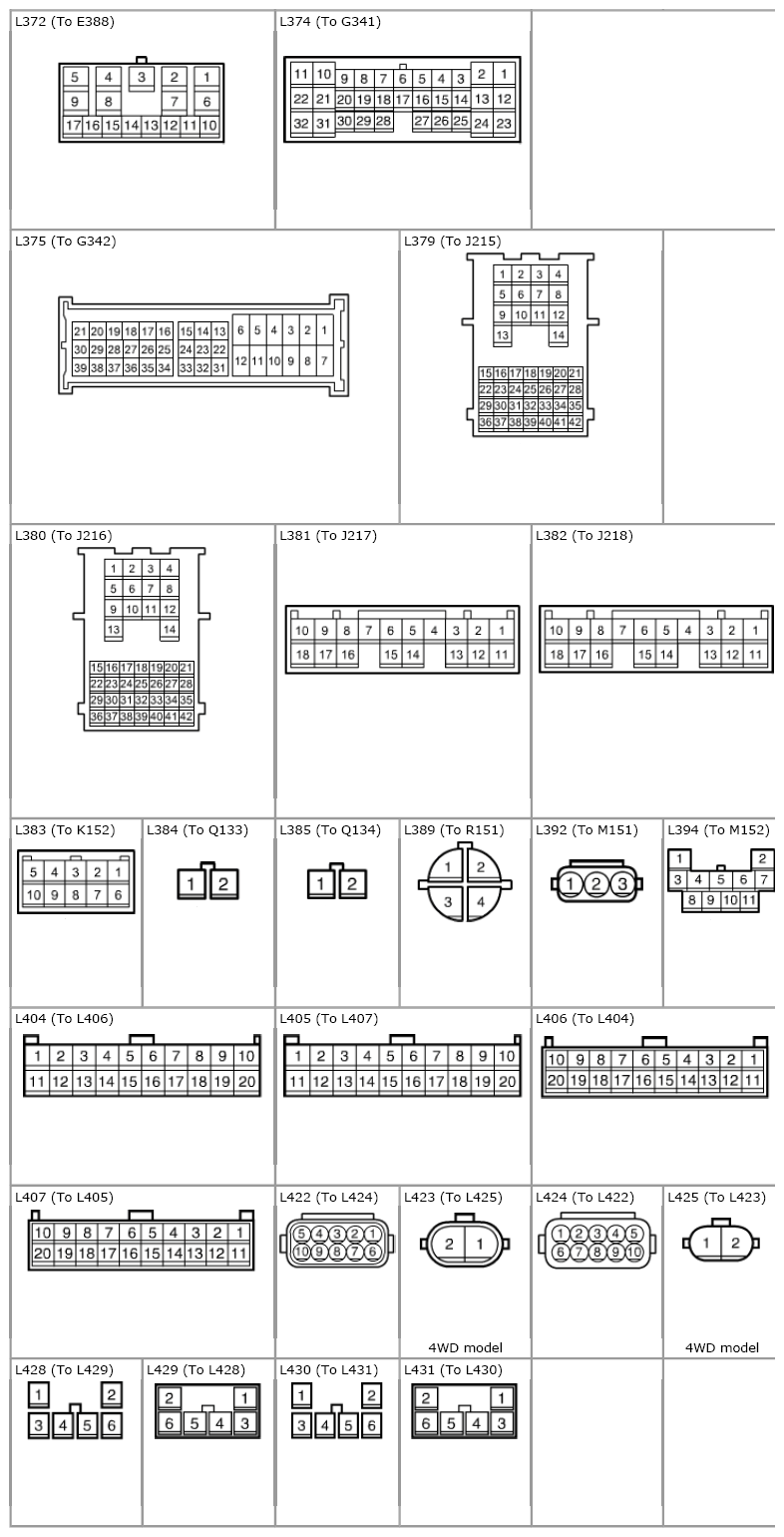

Fig 1: L Connector Chart (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

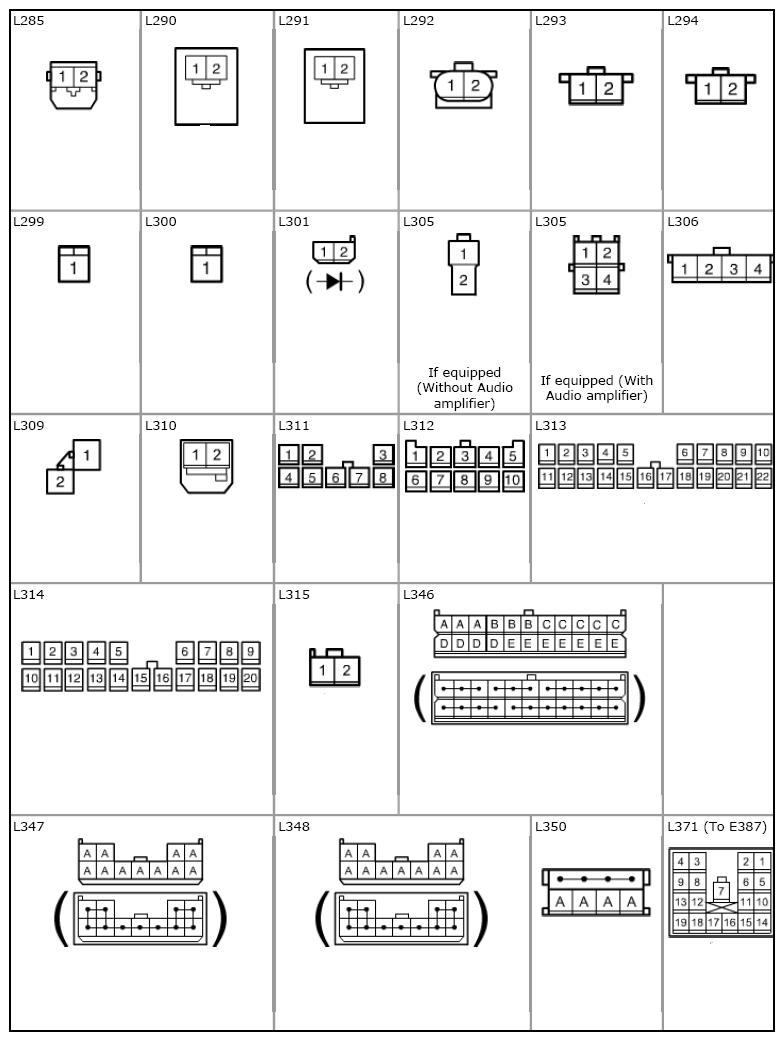

Fig 2: L Connector Chart (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

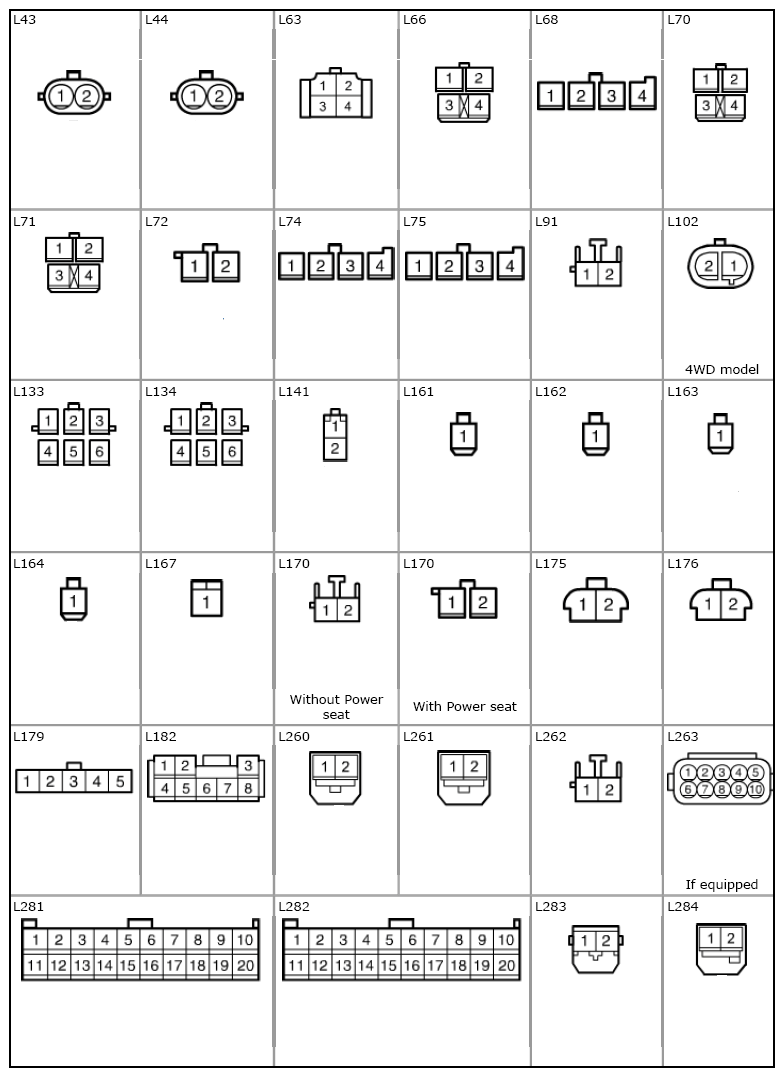

Fig 3: L Connector Chart (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

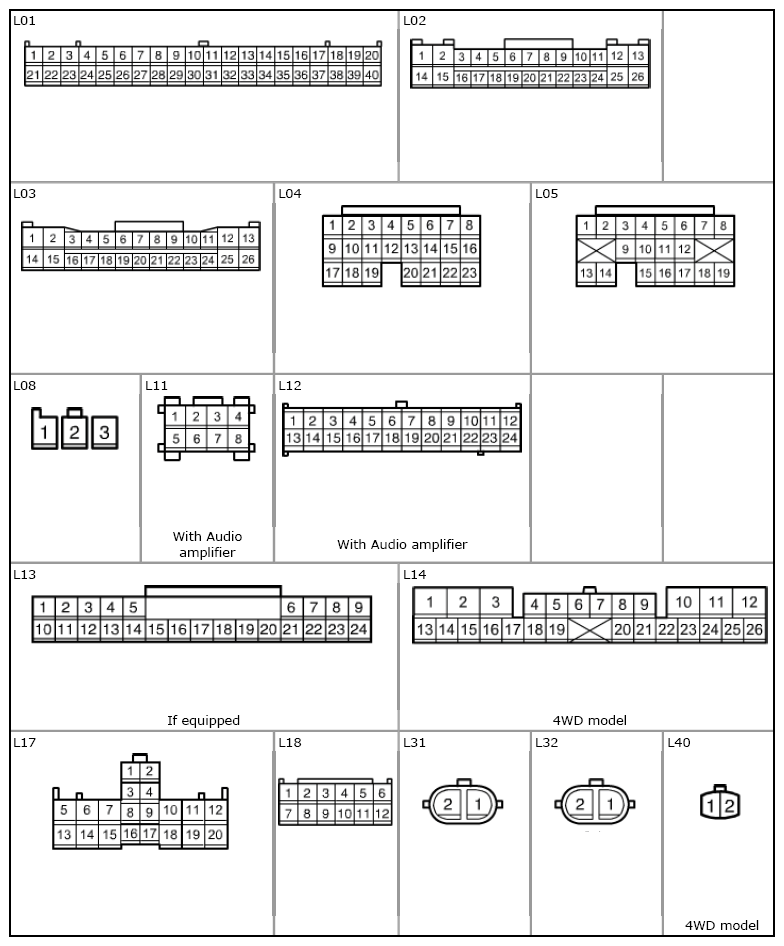

Fig 4: L Connector Chart (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
