How to Read Connector Codes and Terminal Nos

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

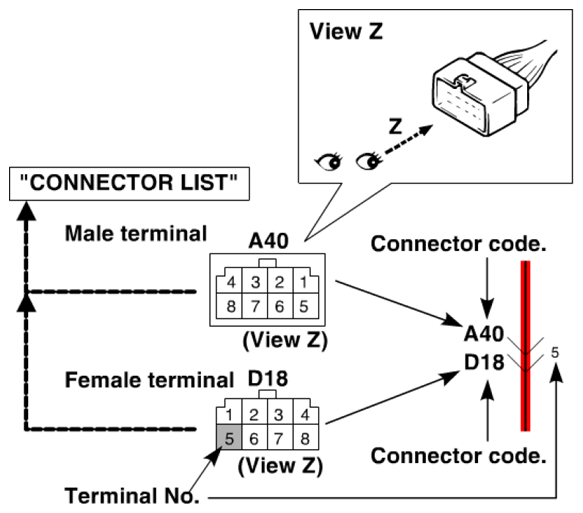

Connector code/Terminal No./Terminal layout
- The connector shape and terminal layout shown in this manual are those when viewed from "Z" in the illustration.
  Refer to LIST OF CONNECTORS .

  Fig 1: Identifying Connector Terminals
  Courtesy of SUZUKI OF AMERICA CORP.

  NOTE: Molded terminal numbers that are different from the above can be found on some connectors in rare cases.
  These molded numbers are not applied in this manual.

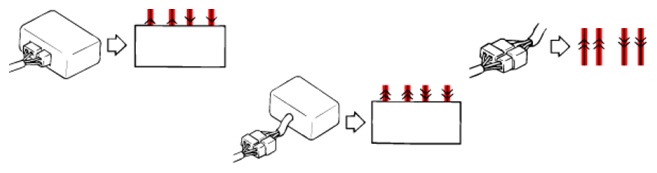

Connector type

Fig 2: Connector Type Communication Diagram
Courtesy of SUZUKI OF AMERICA CORP.

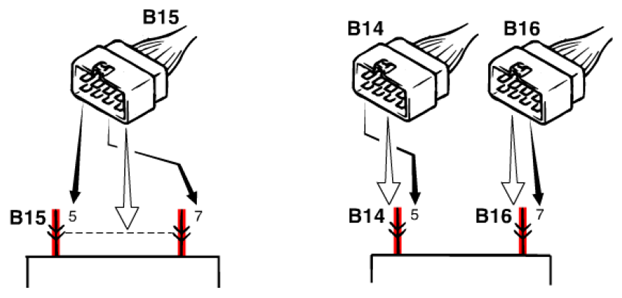

Terminals in one connector (Broken line) (B15)/Terminals in different connectors (B14, B16)

Fig 3: Identifying B15, B14 And B16 Connector Terminals
Courtesy of SUZUKI OF AMERICA CORP.

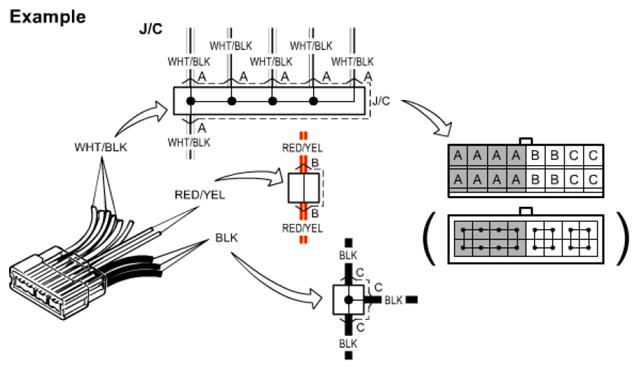

Joint connector (J/C)
- The joint connector (J/C) connects several different wires with the same wire color at one place instead of connecting them by welding or caulking one by one. It is not an ordinary connector but a part of the continuous wire in the harness.

  Fig 4: Joint Connector (J/C) Description
  Courtesy of SUZUKI OF AMERICA CORP.

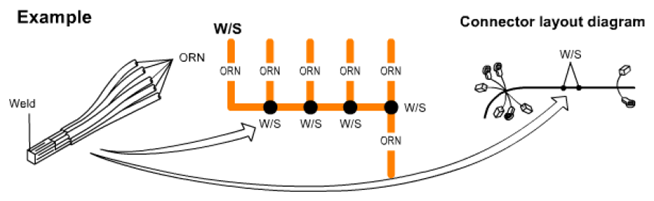

Weld splice (W/S)
- Several different wires with the same wire color are joined by welding at a W/S.

  Fig 5: Weld Splice (W/S) Connector Description
  Courtesy of SUZUKI OF AMERICA CORP.

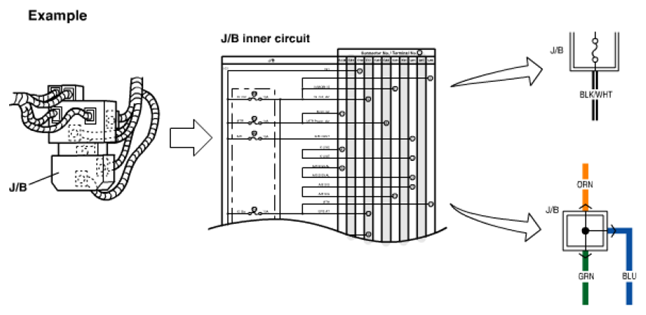

Junction block (J/B)

Fig 6: Junction Block (J/B) Description
Courtesy of SUZUKI OF AMERICA CORP.

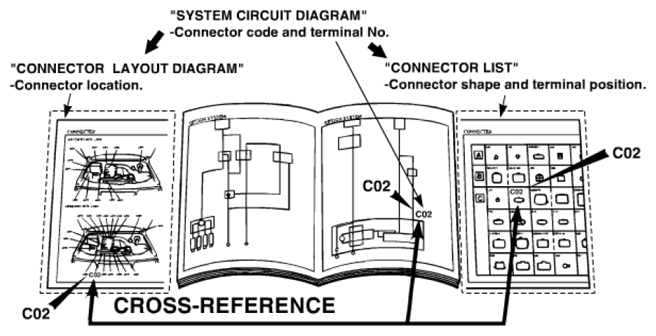

Connector location, shape and terminal No.
Refer to CONNECTOR LAYOUT DIAGRAM .

Refer to SYSTEM CIRCUIT DIAGRAM .

Refer to LIST OF CONNECTORS .

Fig 7: Connector Layout Diagram
Courtesy of SUZUKI OF AMERICA CORP.
