Front Seat Belt Components

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Pay attention to the following points when replacing the front seat belt. Otherwise, the front seat belt may not work properly and injury in case of collision.
Tighten bolts or screws in numerical order ("1" to "6").
Tighten buckle to specified torque and then check that it can be moved backward and forward.

CAUTION: The figure shows the driver's seat belt. The tightening torques for the passenger's are the same.

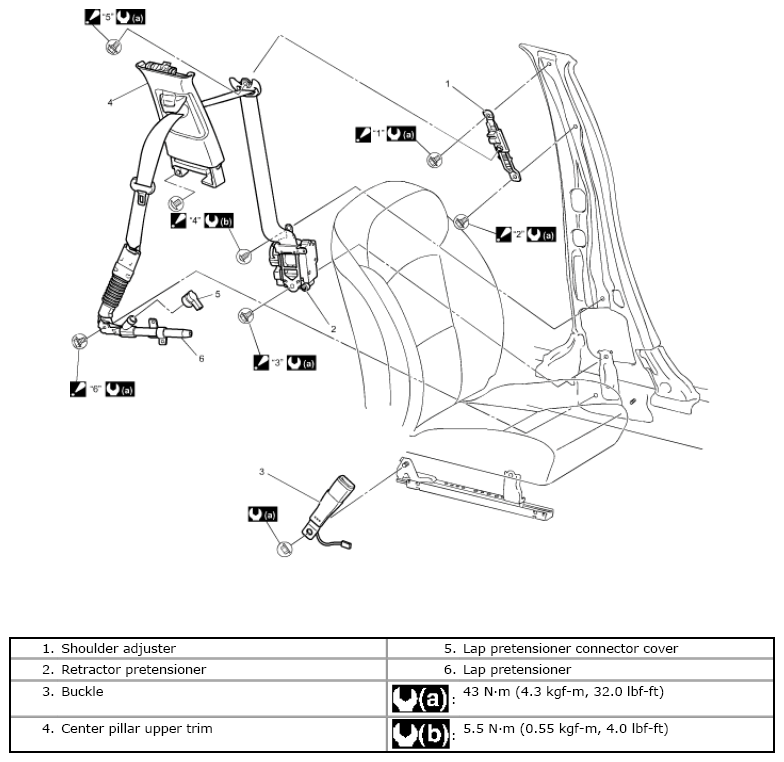

Fig 1: Front Seat Belt Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
