CVT Oil Pan Inspection
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reference: CVT OIL PAN REMOVAL AND INSTALLATION

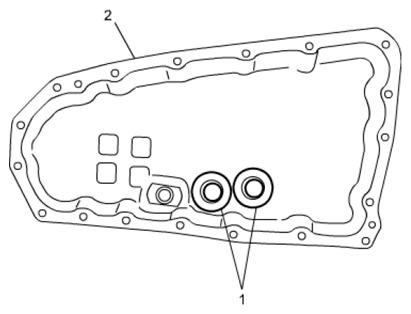

- Check that no metal particle is attached to the oil cleaner magnets (1). If attached, clean it.
- Check CVT oil pan (2) for crack, deformation, and damage. If any defect is found, replace CVT oil pan.
