Rear Differential Oil Level Check
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
- Hoist vehicle and check oil leakage. If leakage exists, correct it.

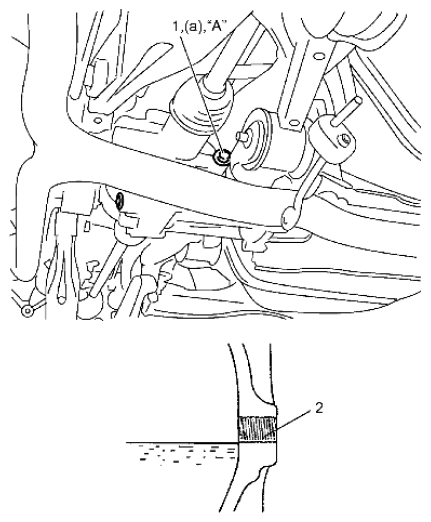

- Remove oil level/filler plug (1) and check oil contamination and also that the oil level is just below the oil level/filler plug hole (2).
Replace oil or pour specified oil up to plug hole if oil is excessively dirty or insufficient.
- Apply sealant to oil level thread/filler plug, and then tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Differential oil level/filler plug (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
