Coupling Assembly Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check coupling assembly for oil leakage. Replace it if leakage exists.
Measure resistance between "1" terminal and "2" terminal of coupling connector (1).
Check harness for open or short if check result is not as specified.

Replace coupling assembly if OK.

Coupling assembly resistance

: 2 - 3 Ω

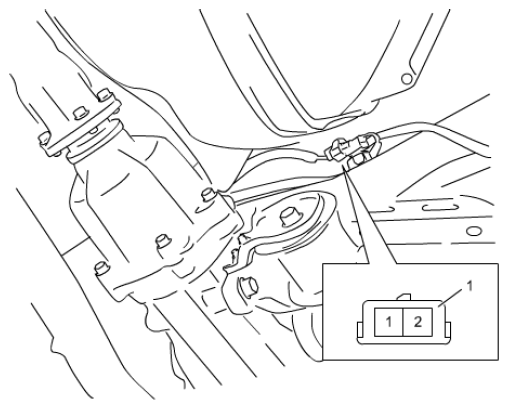

Fig 1: Identifying Coupling Assembly Connector Terminal
Courtesy of SUZUKI OF AMERICA CORP.
