4WD Control Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove trunk room right side trim, see TRIM REMOVAL AND INSTALLATION .
  3. Disconnect connector (1) from 4WD control module (2).
  4. Remove 4WD control module.

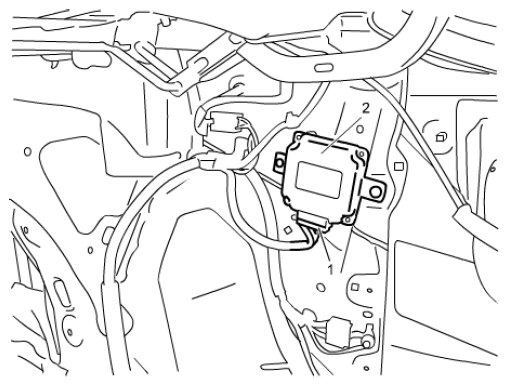

    Fig 1: Identifying 4WD Control Module
    G06528471Courtesy of SUZUKI OF AMERICA CORP.
