DTC Clearance

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Confirm that ignition mode of keyless push start system is in "OFF".
Connect SUZUKI scan tool to DLC (1) located on underside of instrument panel.
Special Tool
1. SUZUKI scan tool (SUZUKI-SDT)

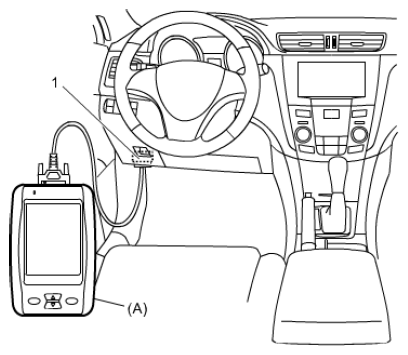

Fig 1: Connecting Scan Tool To DLC
Courtesy of SUZUKI OF AMERICA CORP.
Push engine switch to change ignition mode to "ON".
Erase DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operator's manual for further details.
Push engine switch to change ignition mode to "OFF" and disconnect SUZUKI scan tool from DLC, after completing check.
