4WD Control Module Self-Diagnosis Function
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
For 4WD control system, 4WD control module has the following options:

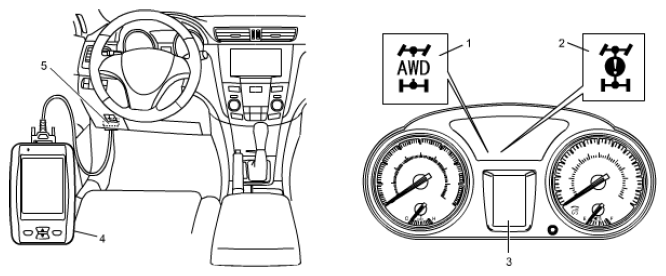

- When ignition mode of keyless push start system is "ON" with engine off, turn on the i-AWD indicator light (1) and i-AWD warning light (2) at the same time for 2 seconds in order to check operation of these indicators.
- When an abnormality in the system is detected, i-AWD warning light is turned on or blinking and the area where that abnormality lies is stored in the memory in 4WD control module. The 4WD control module sends a signal to the combination meter through CAN communication the instructions displayed on the information display (3) urging vehicle driver to exercise caution and perform required operations.
- DTC can be checked by using SUZUKI scan tool (4) connected to DLC (5).
- When 4WD control module detects any faulty condition, 4WD control module will switch off the current to coupling assembly and vehicle is changed to 2WD position.
