Using SUZUKI scan tool
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
- Confirm that ignition mode of keyless push start system is "OFF".

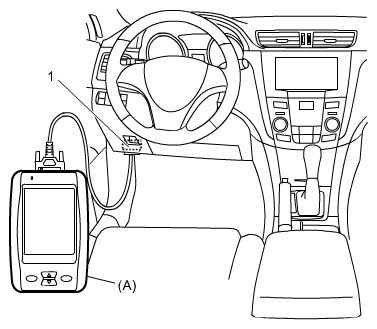

- Connect SUZUKI scan tool to DLC (1).
Special Tool
- SUZUKI scan tool (SUZUKI-SDT)
- Push engine switch to change ignition mode to "ON".
- Select "TPS ID registration" of "Utility" under "keyless start control module" mode of SUZUKI scan tool.

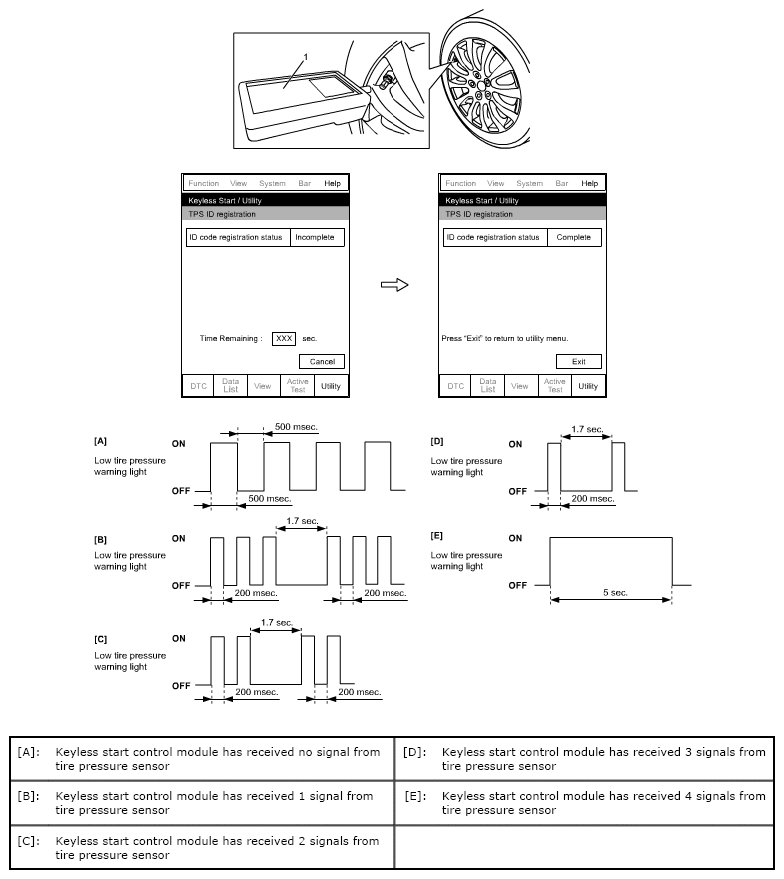

- Using recommended tool ("VT55" made by ATEQ) (1), activate each tire pressure sensor according to the instructions displayed on SUZUKI scan tool within 180 seconds.
Refer to the instruction of recommended tool for the method of activating tire pressure sensor.
NOTE:- When tire pressure sensor is activated, ID code of tire pressure sensor is registered automatically in keyless start control module.
- When "ID code registration status" indicated on SUZUKI scan tool is "Complete", registration has been completed. If "Time Out" is indicated, perform all the registration procedures. Also, it is possible to check the number of ID codes of tire pressure sensors received by keyless start control module by observing the flashing pattern of low tire pressure warning light.
- When registering tire pressure sensor ID codes using SUZUKI scan tool, former ID codes are cleared. Therefore, if registration is not completed, perform the above steps again.
- When keyless start control module receives each ID code of 4 tire pressure sensors, keyless start control module turns ON low tire pressure warning light in combination meter for 5 seconds.
- Push engine switch to change ignition mode to "OFF", and then disconnect SUZUKI scan tool from DLC.
