HVAC Electronic Control Input/Output Block Diagram

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

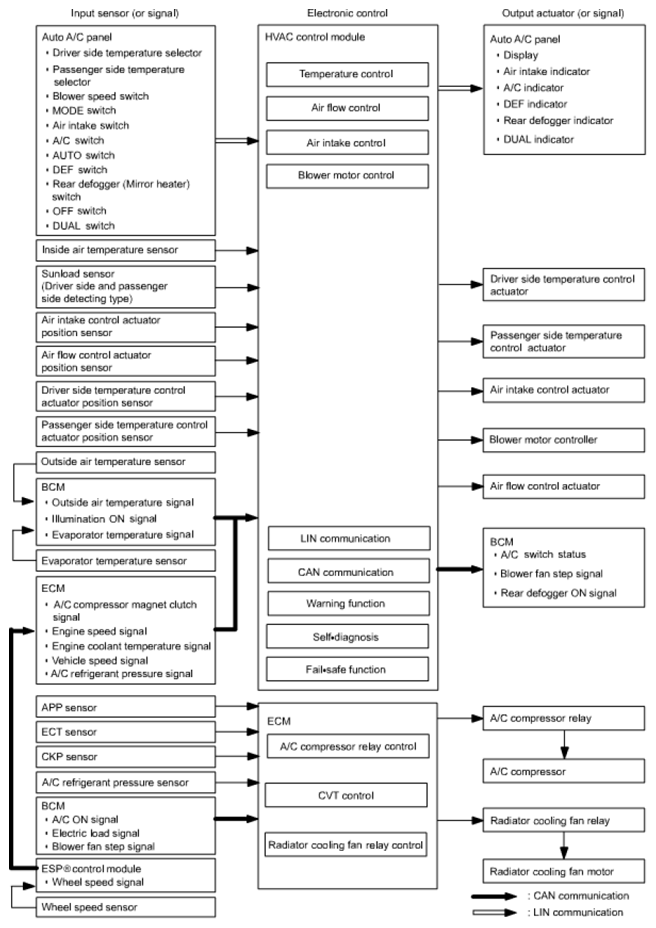

Fig 1: HVAC Electronic Control Input / Output Block Diagram
G06526675Courtesy of SUZUKI OF AMERICA CORP.
