Passenger side

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove glove box and passenger side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Remove passenger side foot duct (2) by removing a screw (1).

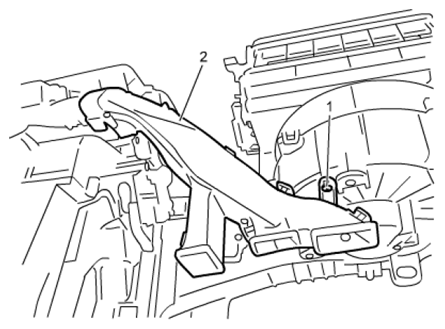

Fig 1: Identifying Passenger Side Foot Duct And Screw
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect temperature control actuator connector (1).
Remove temperature control actuator (3) and arm (4) from HVAC unit by removing screws (2).

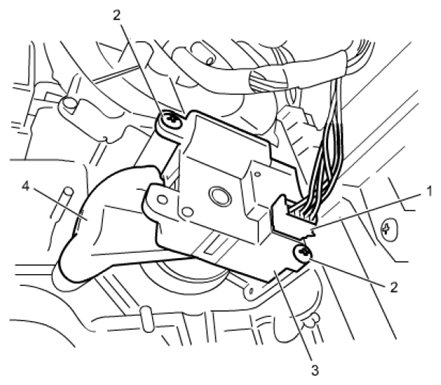

Fig 2: Identifying Temperature Control Actuator Connector, Temperature Control Actuator, Arm And Screws
