Driver side

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove column hole cover from instrument panel, see COMBINATION METER REMOVAL AND INSTALLATION .
  2. Remove driver side Instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  3. Remove driver side foot duct (2) by removing a screw (1).

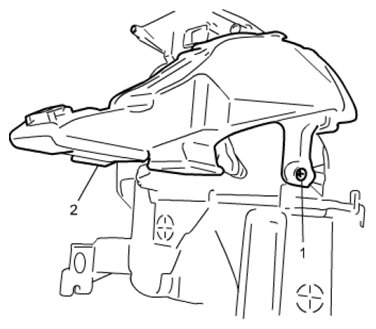

    Fig 1: Identifying Driver Side Foot Duct And Screw
    G06526749Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect temperature control actuator connector.
  5. Remove temperature control actuator (2) and arm (3) from HVAC unit by removing screws (1).

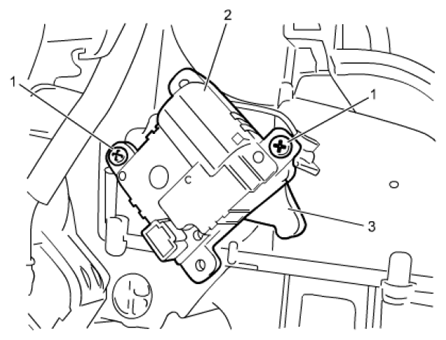

    Fig 2: Identifying Temperature Control Actuator, Arm And Screws
    G06526750Courtesy of SUZUKI OF AMERICA CORP.
