Temperature Control Actuator Removal and Installation: Installation
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For proper installation, be careful not to reverse driver side and passenger side of temperature control actuator.
Reverse removal procedure nothing the following points.

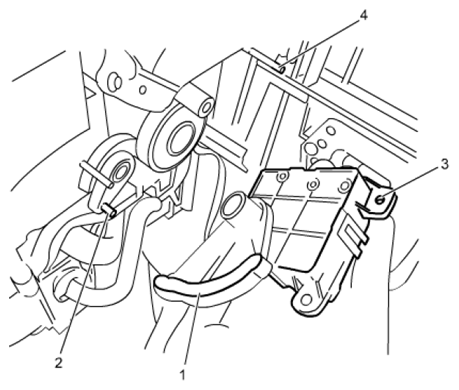

- Make sure protrusion (2) on link fits into groove (1) on arm.
- When installing temperature control actuator, make sure protrusion (4) on HVAC unit fits into installation hole (3) on temperature control actuator.
