Temperature Control Actuator Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: TEMPERATURE CONTROL ACTUATOR REMOVAL AND INSTALLATION

Set arm to actuator and check if arm operates smoothly when battery voltage is conducted to terminals of actuator connector (1).

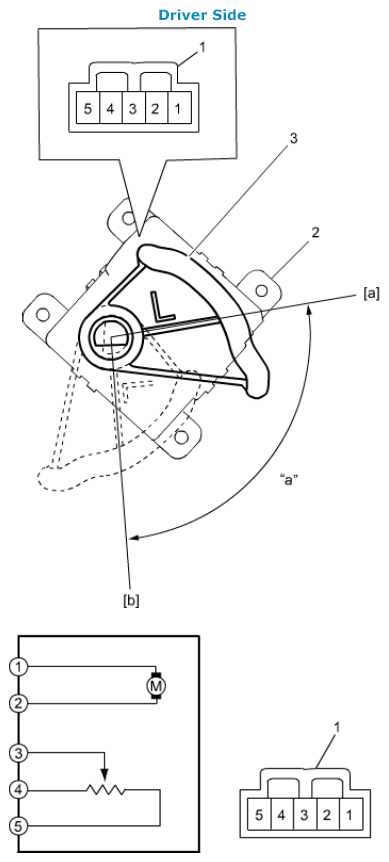

Fig 1: Identifying Temperature Control Actuator Connector Terminals (Driver Side)
Courtesy of SUZUKI OF AMERICA CORP.

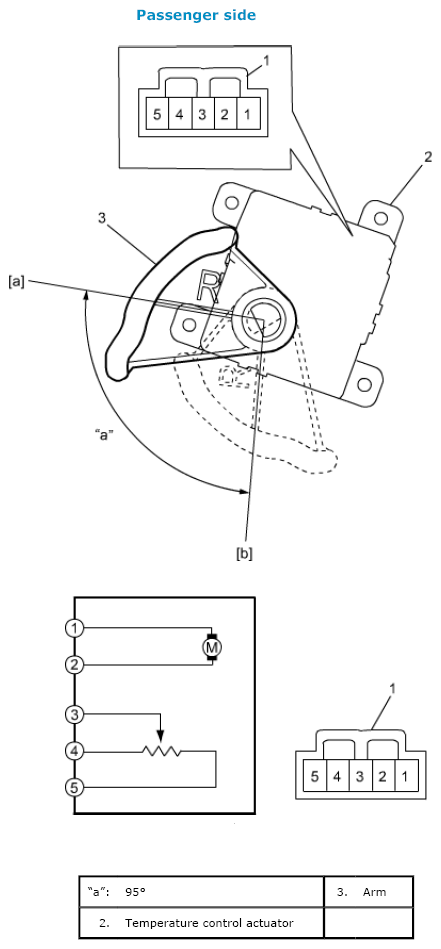

Fig 2: Identifying Temperature Control Actuator Connector Terminals (Passenger Side)
Courtesy of SUZUKI OF AMERICA CORP.

Using ohmmeter, measure resistance between "3" terminal and "5" terminal of actuator connector (1) at each arm position.

Temperature control actuator resistance

Driver side

RESISTANCE REFERENCE

Arm position	Resistance (25 °C (77 °F))
MAX COOL [a]	Approx. 0.62 kΩ
MAX HOT [b]	Approx. 5.38 kΩ

Passenger side

RESISTANCE REFERENCE

Arm position	Resistance (25 °C (77 °F))
MAX COOL [a]	Approx. 5.38 kΩ
MAX HOT [b]	Approx. 0.62 kΩ

Using ohmmeter, measure resistance between "4" terminal and "5" terminal.
Temperature control actuator resistance (Total resistance)

6 kΩ (Driver side and passenger side)

Fig 3: Identifying Actuator Connector Installation Angle
Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Actuator Connector Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

If check result is not as specified, replace temperature control actuator.
