Relief Valve Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure noting the following points.

Apply specified compressor oil to new O-ring.
: Compressor oil 99000-99022-00E (Compressor oil (DH-PS, 250cc))
Tighten relief valve to specified torque.
Tightening torque

Relief valve (a): 9.0 N.m (0.9 kg-m, 7.0 lbf-ft)

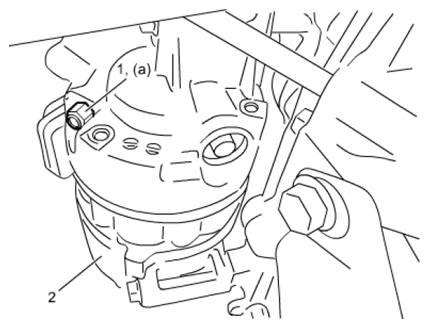

Fig 1: Identifying Relief Valve And A/C Compressor
Courtesy of SUZUKI OF AMERICA CORP.
