Relief Valve On-Vehicle Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Using special tool, check there is no refrigerant leakage.

If any leakage is found, replace relief valve (1).

Special Tool

: 09990-86012

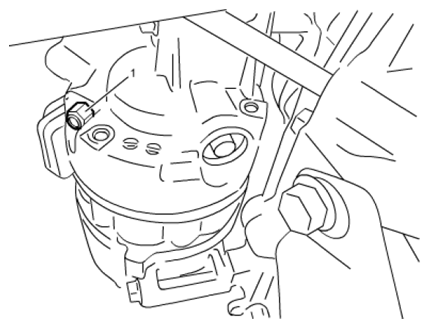

Fig 1: Identifying Relief Valve
G06526783Courtesy of SUZUKI OF AMERICA CORP.
