Inside Air Temperature Sensor Removal and Installation: Removal
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove column hole cover from instrument panel, see COMBINATION METER REMOVAL AND INSTALLATION .

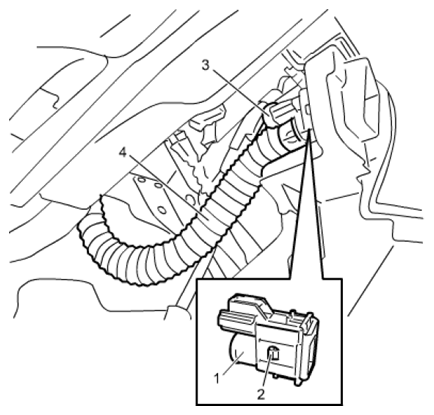

- Disconnect connector (3) and aspirator hose (4) from inside air temperature sensor (1).
- Release claws (2) and then remove inside air temperature sensor from instrument panel.
