HVAC Unit Removal and Installation: Installation
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure noting the following points.

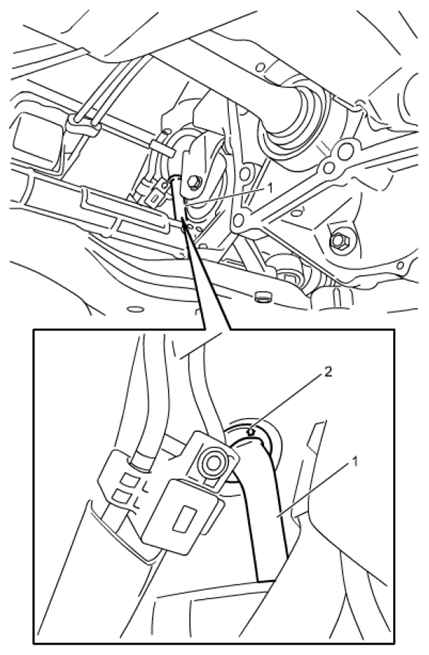

- Install drain hose (1) so that the arrow mark (2) is positioned toward the vehicle forward.
- Apply specified compressor oil to new O-ring.
: Compressor oil 99000-99022-00E (Compressor oil (DH-PS, 250cc))
- Tighten liquid pipe bolt to specified torque.
Tightening torque
Liquid pipe bolt: 12 N.m (1.2 kg-m, 9.0 lbf-ft)
- Tighten HVAC unit nut.
Tightening torque
HVAC unit nut: 10 N.m (1.0 kg-m, 7.5 lbf-ft)
- Evacuate and charge A/C system referring to "EVACUATION " and "CHARGE " in Operation Procedure for Refrigerant Charge .
- Refill cooling system with coolant.
