HVAC Control Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Release tabs (1) and claws (2) of auto A/C panel (3).
Disconnect connector and remove auto A/C panel.
CAUTION: Remove auto A/C panel from lower side and prevent the claws from damaging.

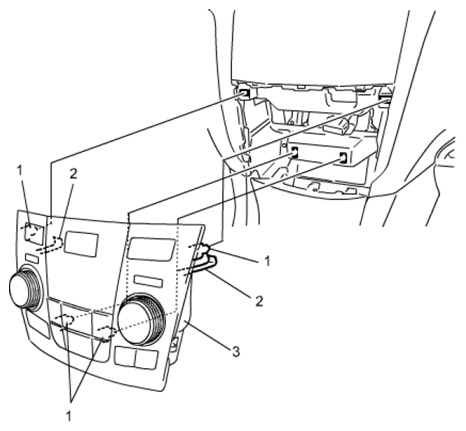

Fig 1: Identifying Auto A/C Panel, Tabs And Claws
Courtesy of SUZUKI OF AMERICA CORP.
Remove audio unit, see AUDIO UNIT REMOVAL AND INSTALLATION .
Remove screws (1), and then disconnect connector from HVAC control module (2).
Remove HVAC control module from steering support member.

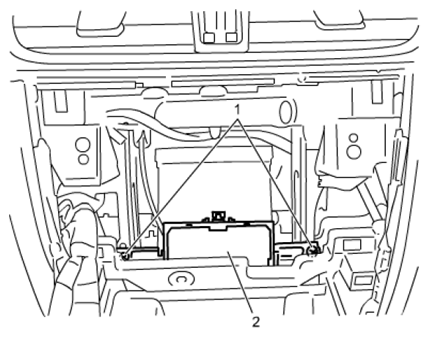

Fig 2: Identifying HVAC Control Module And Screws

Courtesy of SUZUKI OF AMERICA CORP.
