Desiccant Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover refrigerant from A/C system referring to "RECOVERY " in Operation Procedure for Refrigerant Charge  .
  2. Remove condenser assembly (1), see Condenser Assembly Removal and Installation .
  3. Remove circlip (2), and then remove filter cap (3) from receiver (5).
  4. Remove desiccant (4).

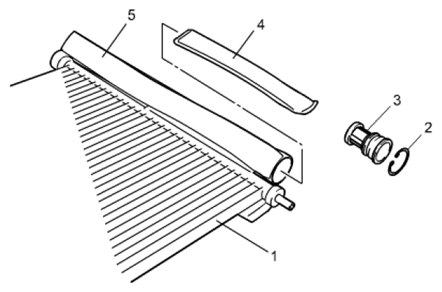

    Fig 1: Identifying Condenser Assembly, Circlip, Filter Cap, Desiccant And Receiver
    G06526712Courtesy of SUZUKI OF AMERICA CORP.
