Condenser Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover refrigerant from A/C system referring to "RECOVERY " in Operation Procedure for Refrigerant Charge  .
  2. Remove front bumper, see FRONT BUMPER REMOVAL AND INSTALLATION .
  3. Remove right side headlight holder, see HEADLIGHT UNIT REMOVAL AND INSTALLATION .
  4. Remove discharge hose bolt (2) and liquid pipe bolt (1), and then disconnect discharge hose (4) and liquid pipe (3) from condenser assembly (5).
  5. Remove condenser assembly mounting bolts (6).

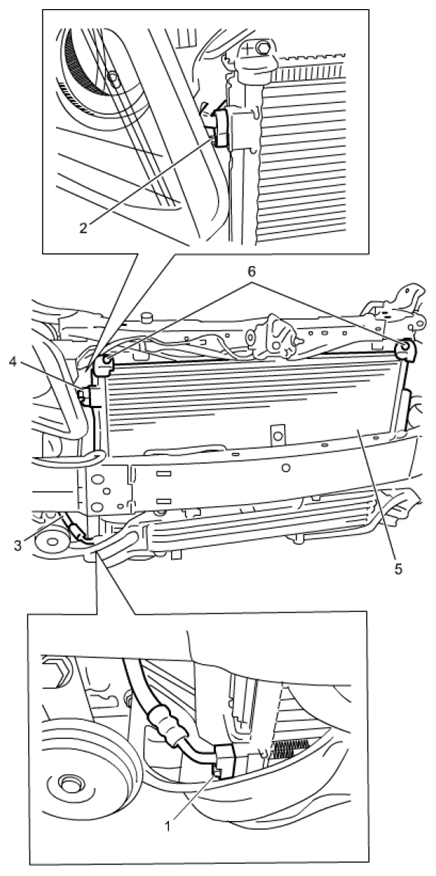

    Fig 1: Identifying Discharge Hose Bolt, Liquid Pipe Bolt, Discharge Hose, Liquid Pipe, Condenser Assembly And Condenser Assembly Mounting Bolts
    G06526711Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove condenser assembly upward.
