Blower Motor Controller Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove passenger side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .

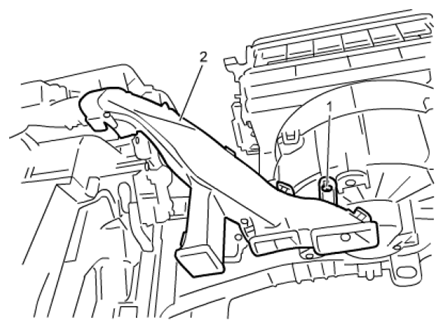

Remove a screw (1). Then remove passenger side foot duct (2) from HVAC unit.

Fig 1: Identifying Passenger Side Foot Duct And Screw
Courtesy of SUZUKI OF AMERICA CORP.

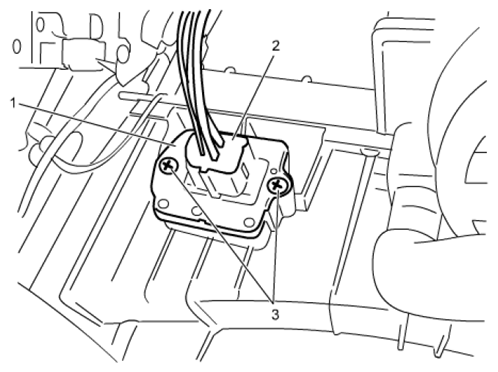

Disconnect connector (2) and remove screws (3).
Then remove blower motor controller (1) from HVAC unit.

Fig 2: Identifying Blower Motor Controller, Connector And Screws
Courtesy of SUZUKI OF AMERICA CORP.
