Air Intake Control Actuator Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove glove box and passenger side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  2. Disconnect connector and remove screws (1) from air intake control actuator (2).

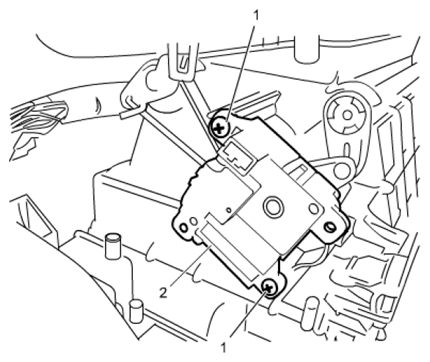

    Fig 1: Identifying Air Intake Control Actuator And Screws
    G06526744Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove air intake control actuator by disconnecting rod (2) from air intake control actuator arm (1).

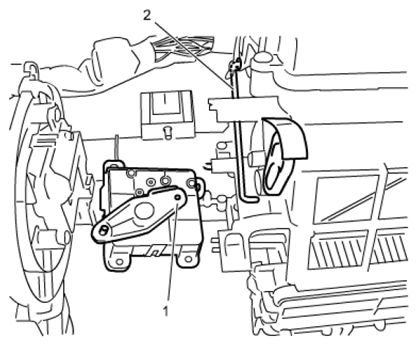

    Fig 2: Identifying Air Intake Control Actuator Arm And Rod
    G06526745Courtesy of SUZUKI OF AMERICA CORP.
