Air Intake Control Actuator Removal and Installation: Installation
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure noting the following points.

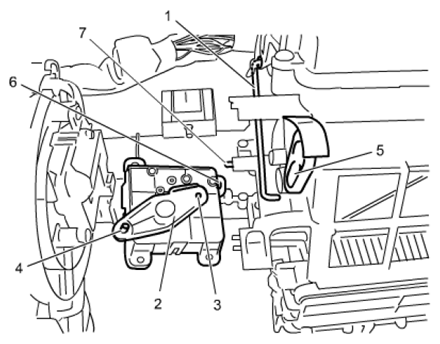

- Make sure rod (1) fits into installation hole (3) of arm (2).
- Make sure protrusion (4) on arm fits into installation hole (5) of link No. 2.
- Make sure protrusion (7) on HVAC unit fits into installation hole (6) of air intake control actuator.
