Air Flow Control Actuator Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove glove box and passenger side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Disconnect actuator connector (1).
Remove air flow control actuator (3) by removing screws (2).

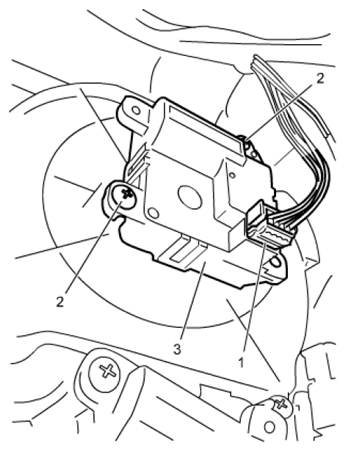

Fig 1: Identifying Actuator Connector, Air Flow Control Actuator And Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove actuator link cover (2) and arm (3) by removing screws (1).

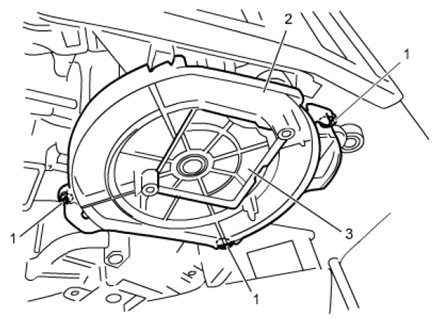

Fig 2: Identifying Actuator Link Cover, Screws And Arm
Courtesy of SUZUKI OF AMERICA CORP.
