Air Flow Control Actuator Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: AIR FLOW CONTROL ACTUATOR REMOVAL AND INSTALLATION

Set arm to actuator and check if arm operates smoothly when battery voltage is conducted to terminals of actuator connector (1).

Fig 1: Identifying Air Flow Control Actuator Connector Terminals
Courtesy of SUZUKI OF AMERICA CORP.

Using ohmmeter, measure resistance between "3" terminal and "5" terminal of actuator connector (1) at each arm position.

Air flow control actuator resistance

RESISTANCE REFERENCE

Arm position	Resistance (25 °C (77 °F))
FACE [a]	Approx. 5.38 kΩ
B/L [b]	Approx. 4.32 kΩ
FOOT	[c] Approx. 2.98 kΩ
D/F1 [d]	Approx. 2.33 kΩ
D/F2 [e]	Approx. 1.78 kΩ
DFR [f]	Approx. 0.62 kΩ

Using ohmmeter, measure resistance between "4" terminal and "5" terminal of actuator connector.
Air flow control actuator resistance (Total resistance) 6 kΩ

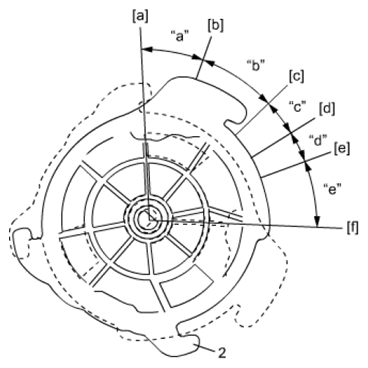

Fig 2: [Arm Installation Angle]

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Actuator Connector Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

If check result is not as specified, replace air flow control actuator.
