A/C Refrigerant Pressure Sensor Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Recover refrigerant from A/C system referring to "RECOVERY " in Operation Procedure for Refrigerant Charge .
Disconnect A/C refrigerant pressure sensor connector (1).
Remove A/C refrigerant pressure sensor (3) from liquid pipe (2).

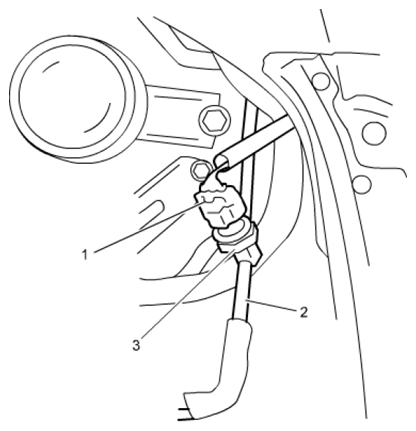

Fig 1: Identifying A/C Refrigerant Pressure Sensor Connector, A/C Refrigerant Pressure Sensor And Liquid Pipe
Courtesy of SUZUKI OF AMERICA CORP.
