A/C Refrigerant Pressure Sensor Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: A/C REFRIGERANT PRESSURE SENSOR AND ITS CIRCUIT INSPECTION

Reverse removal procedure noting the following points.

Apply specified compressor oil to new O-ring.
: Compressor oil 99000-99022-00E (Compressor oil (DH-PS, 250cc))
Tighten A/C refrigerant sensor (1) to specified torque.
Tightening torque

A/C refrigerant pressure sensor bolt (a): 10.8 N.m (1.1 kg-m, 8.0 lbf-ft)

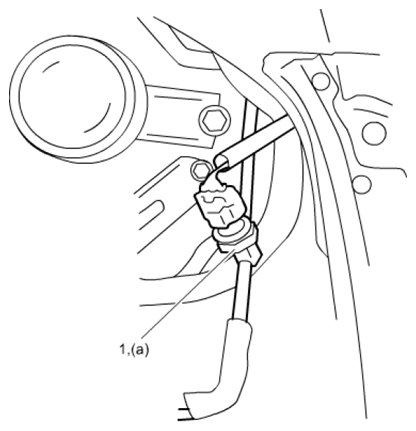

Fig 1: Identifying A/C Refrigerant Pressure Sensor Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Evacuate and charge A/C system referring to "EVACUATION " and "CHARGE " in Operation Procedure for Refrigerant Charge .
