Magnet Clutch Resistance Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Using ohmmeter (2), measure resistance of starter coil between clutch lead wire (1) and A/C compressor body.

If check result is not as specified, replace magnet clutch assembly.

Specified resistance of magnet clutch

Approx. 3.2 - 4.3 Ω at 20 °C (68 °F)

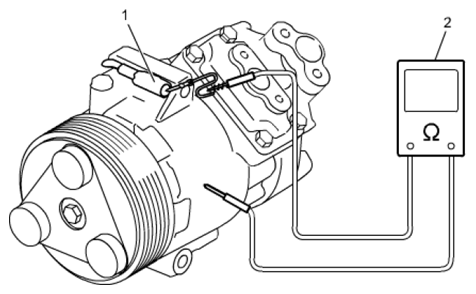

Fig 1: Measuring Resistance Of Starter Coil Between Clutch Lead Wire And A/C Compressor Body Using Ohmmeter

Courtesy of SUZUKI OF AMERICA CORP.
