A/C Compressor Disassembly and Reassembly: Reassembly

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse disassembly procedure noting the following points.

Fit protrusion (1) on underside of magnet clutch coil into hole (2) on A/C compressor body assembly.

Fig 1: Installing Protrusion On Underside Of Magnet Clutch Coil Into Hole On A/C Compressor Body Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Use new snap rings.
Press fit magnet clutch pulley (1) by using special tool and hydraulic press.
Special Tool
1. 09951-15511

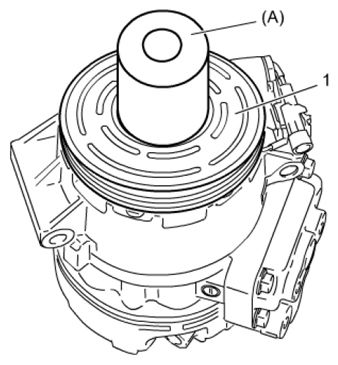

Fig 2: Pressing Magnet Clutch Pulley Using Special Tool And Hydraulic Press
Courtesy of SUZUKI OF AMERICA CORP.
Apply thread lock cement to thread part of armature plate bolt and tighten it to specified torque.
Tightening torque

Armature plate bolt: 18 N.m (1.8 kg-m, 13.5 lbf-ft)

: Thread lock cement 99000-32050 (Thread Lock Cement 1342)
After reassembling A/C compressor, confirm clearance between armature plate and magnet clutch, see A/C Compressor Inspection .
