A/C Compressor Disassembly and Reassembly: Disassembly

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Hold armature plate (2) with special tool and remove armature plate bolt (1).
Remove armature plate and shim(s) from shaft.
Special Tool
1. 09991-06310

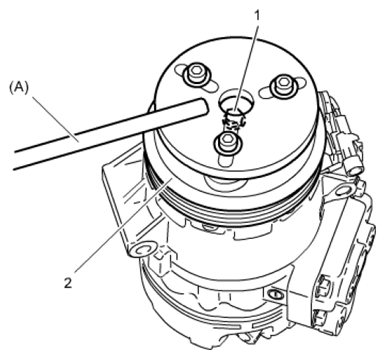

Fig 1: Removing Armature Plate Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove snap ring (1) using (opening type) snap ring pliers.

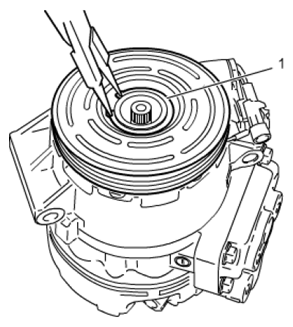

Fig 2: Removing Snap Ring Using Snap Ring Pliers
Courtesy of SUZUKI OF AMERICA CORP.
Remove magnet clutch pulley (2) with puller (1).

Fig 3: Removing Magnet Clutch Pulley With Puller
Courtesy of SUZUKI OF AMERICA CORP.
Remove screw (1), and then remove bracket (3) of magnet clutch coil wire connector (2).

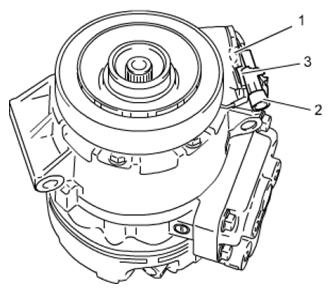

Fig 4: Identifying Magnet Clutch Coil Wire Connector Bracket And Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove snap ring (1) using (opening type) snap ring pliers, and then remove magnet clutch coil (2).

Fig 5: Removing Snap Ring Snap Ring Pliers
Courtesy of SUZUKI OF AMERICA CORP.
