On-Board Diagnostic System Description
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
HVAC control module detects malfunctions, which may occur in the following areas:
- Inside air temperature sensor
- Sunload sensor
- CAN communication line
- LIN communication line
- Serial communication line
- Driver side temperature control actuator
- Passenger side temperature control actuator
- Air flow control actuator
- Air intake control actuator
- Auto A/C panel
- HVAC control module

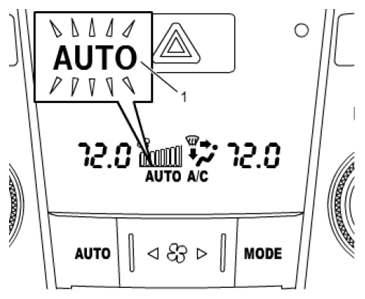

When HVAC control module detects malfunction, the "AUTO" display (1) flashes to warn and the diagnostic trouble code (DTC) is stored in the memory of the module. When diagnosing trouble, the DTC can be checked with DTC CHECK .
