Not Using SUZUKI Scan Tool

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Display history DTC on VFD referring to "NOT USING SUZUKI SCAN TOOL " under DTC CHECK .
  2. Make sure that DTC and fan mark (1) are displayed.
  3. Push "OFF" switch (2) and "MODE" switch (3) simultaneously for several seconds.
  4. After completing clearance, "CLr" (4) is displayed.

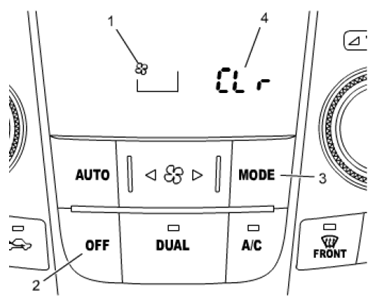

    Fig 1: Identifying Fan Mark, Off Switch And Mode Switch
    G06526690Courtesy of SUZUKI OF AMERICA CORP.
  5. Check that no DTC is displayed on VFD, see DTC CHECK .
