History DTC

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Push engine switch to change ignition mode to "ON".
Set driver and passenger side temperature selector to 72 °F or 25 °C.
Push "AUTO" switch (1) and "MODE" switch (2) simultaneously.
NOTE: Steps 2) and 3) must be finished within 15 seconds after completing Step 1).
Check for DTC (3), see DTC Table .
NOTE:
- If history DTC is stored in HVAC control module, fan mark (4) and history DTC is displayed on VFD for about 3 minutes continuously.

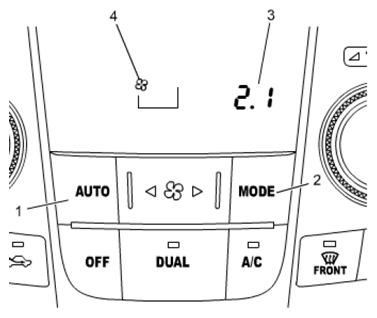

  Fig 1: Identifying Auto Switch And Mode Switch
  Courtesy of SUZUKI OF AMERICA CORP.
- If no history DTC is stored in its memory, fan mark and "END" is displayed on VFD for about 3 minutes continuously.
- When HVAC control module stores 2 or more history DTCs, each one is displayed once starting from the higher priority DTC.
- History DTC is displayed on VFD according to the following steps:
  1. Higher priority DTC appears for 4 seconds.
  2. No DTC appears for 0.5 second.
  3. Next priority DTC appears for 4 seconds.
  4. No DTC appears for 0.5 second.
  5. Remaining DTCs are displayed in order of priority.
  6. DTC display is repeated in same step for about 3 minutes.
- HVAC control module will cancel DTC display due to any of the following conditions:
  - Ignition mode of keyless push start system is changed to "OFF".
  - Both "AUTO" switch and "MODE" switch are pushed simultaneously.
After completing above check, push engine switch to change ignition mode to "OFF".
