CAN Communication System Diagnosis General Description
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
SUZUKI scan tool is used for diagnosis in this section. Communication method between SUZUKI scan tool and each control module and sensor is shown as below.
Special Tool
: SUZUKI scan tool (SUZUKI-SDT)

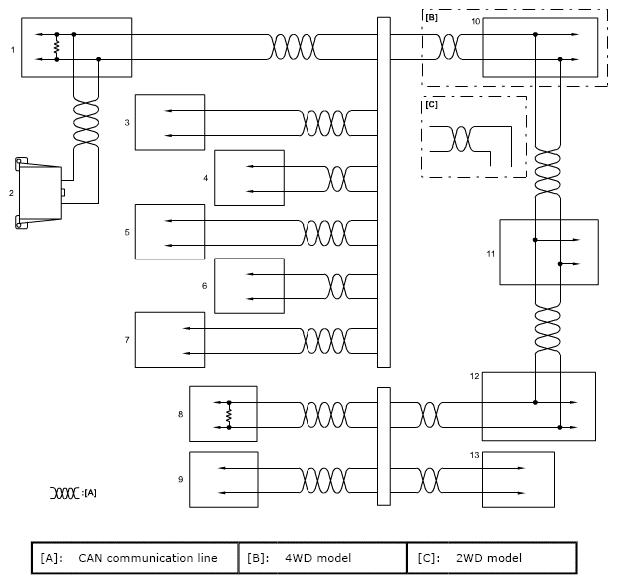

COMMUNICATION WITH SCAN TOOL REFERENCE
| Control module/sensor | Communication with scan tool | Monitor of CAN-DTC | Bus check function | |
|---|---|---|---|---|
| 1 | Combination meter | CAN | Available | Available |
| 2 | DLC | - | - | - |
| 3 | Keyless start control module | CAN | Available | Available |
| 4 | Steering angle sensor | Not available | Not available | Available |
| 5 | SDM | CAN | Available | Available |
| 6 | HVAC control module | CAN | Available | Available |
| 7 | Rain/light sensor | Not available | Not available | Available |
| 8 | ECM | CAN | Available | Available |
| 9 | TCM | CAN | Available | Available |
| 10 | 4WD control module | CAN | Available | Available |
| 11 | BCM | CAN | Available | Available |
| 12 | ESP® control module | CAN | Available | Available |
| 13 | P/S control module | CAN | Available | Available |
